FIBC Production Process
From Quality Raw Materials to Finished Bulk Packaging Solutions
As a dedicated supplier of Flexible Intermediate Bulk Containers (FIBC), Jumbo Bags, Bulk Bags, and PP Woven Packaging Solutions from India, FIBC SILVASSA supplies bulk packaging tailored to your exact technical and operational requirements. Explore the complete eight-stage FIBC production process flow—from polypropylene tape extrusion and fabric weaving to bag assembly, quality inspection, and dispatch—to understand how each specification shapes the finished bags we supply.
8-Stage FIBC Production Process Flow
Understanding the jumbo bag production process helps procurement and engineering teams select the right fabric construction, coating, loop design, and closure options for safe bulk material handling.

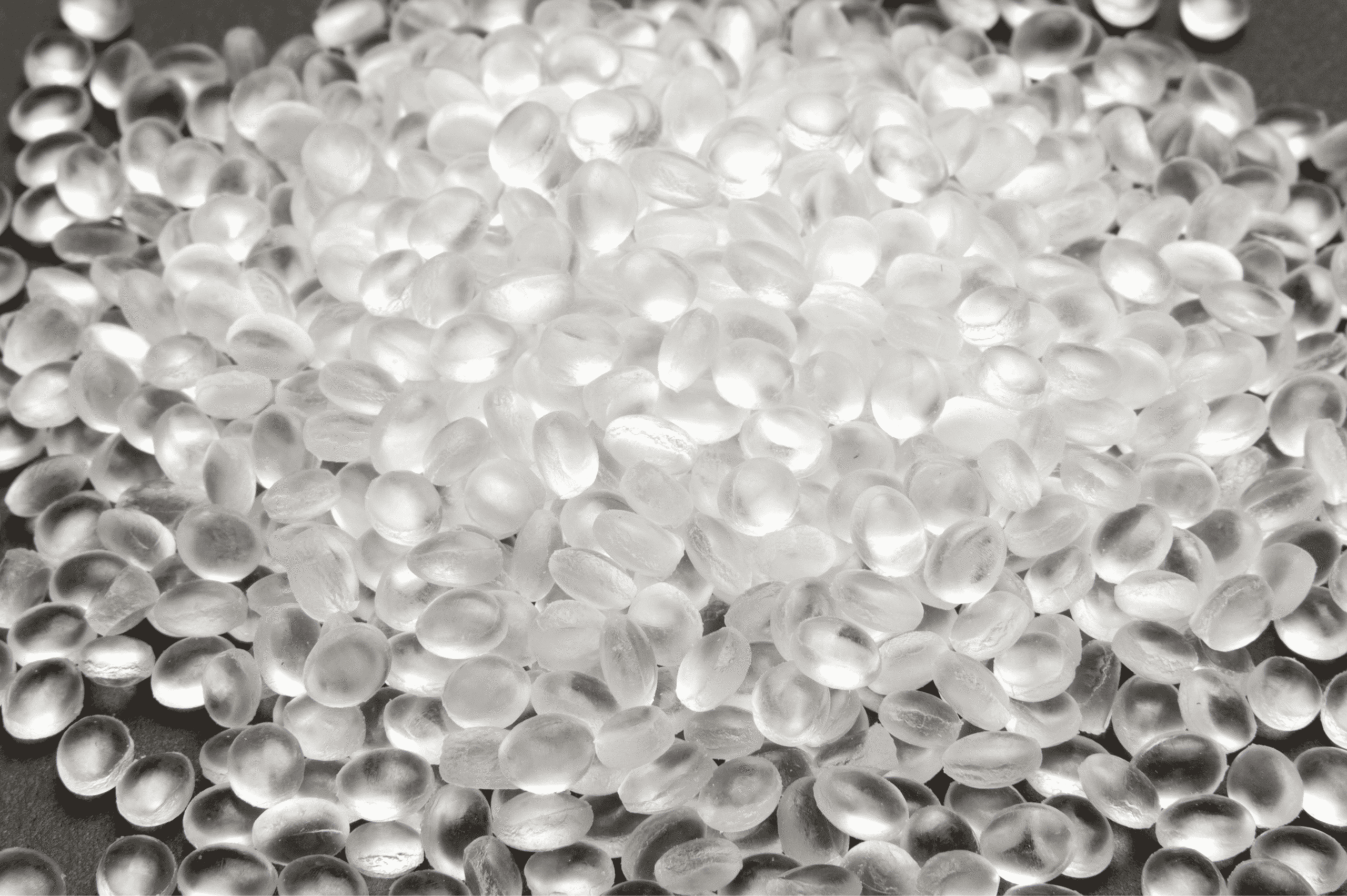

Raw Material Selection

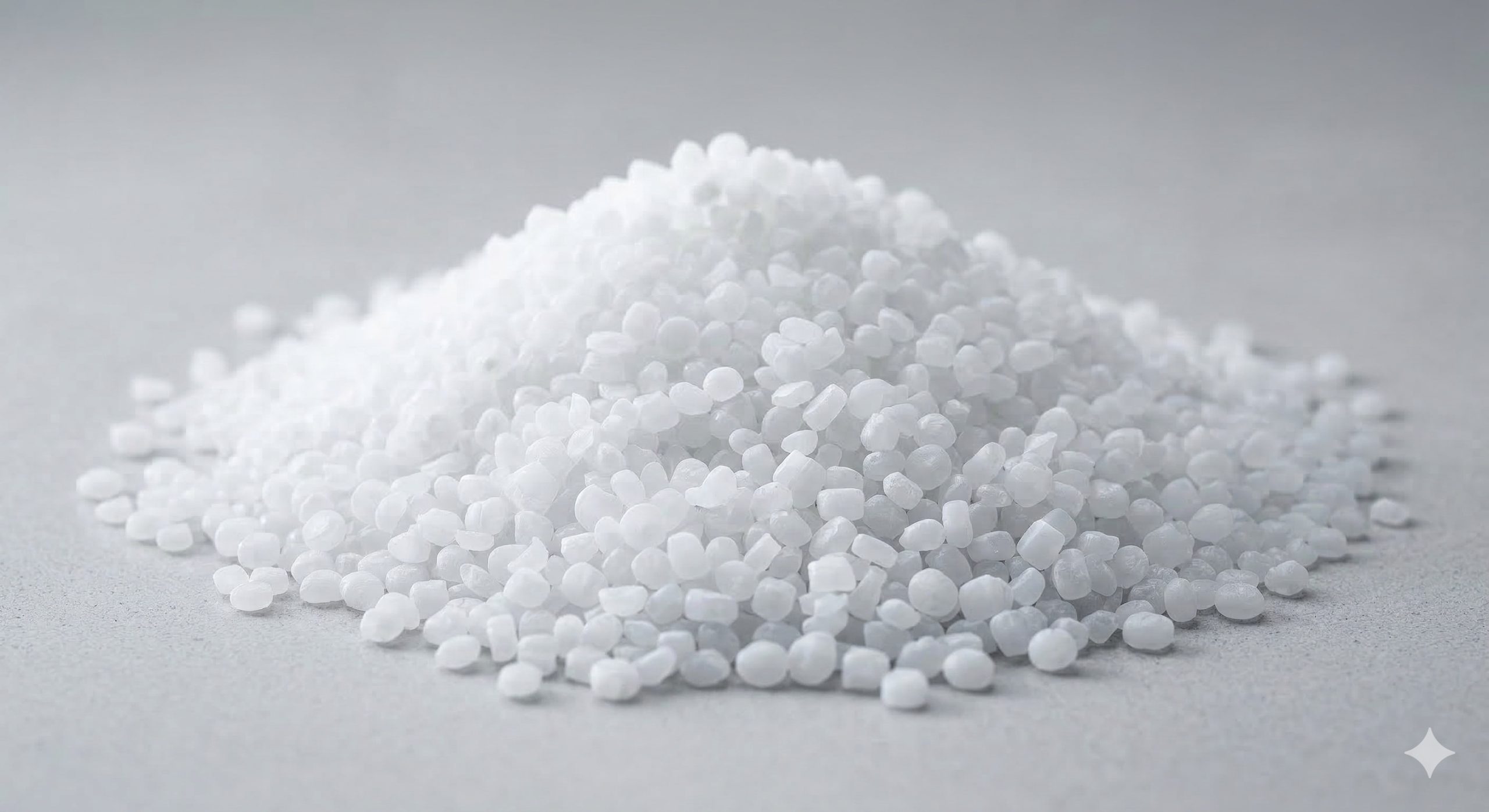

The FIBC production process flow begins with selecting virgin polypropylene (PP) granules suited for high-tenacity woven packaging. Depending on the required fabric properties and bag specifications, application-specific additives such as UV stabilizers, calcium carbonate, or masterbatch pigments are blended to support strength, durability, and outdoor exposure requirements.
PP Tape Extrusion
Polypropylene granules and selected additives are melted and extruded into a continuous polymer film, rapidly cooled, and slit into precision-width flat tapes. These tapes are heated and stretched under controlled tension to orient the polymer molecules, developing the tensile strength needed for woven FIBC fabric.
Fabric Weaving
High-tenacity PP tapes wound onto bobbins are loaded onto circular or flat weaving looms. The tapes are interlaced in warp and weft directions to create strong polypropylene woven fabric in specified widths and fabric weights (GSM), suitable for different FIBC designs and load requirements.
Lamination and Printing
Where moisture protection or fine-powder containment is specified, woven fabric undergoes optional coating or lamination with a polymer layer. Customer-specific printing is also applied to fabric panels to display company branding, product identification, handling symbols, and safety information.

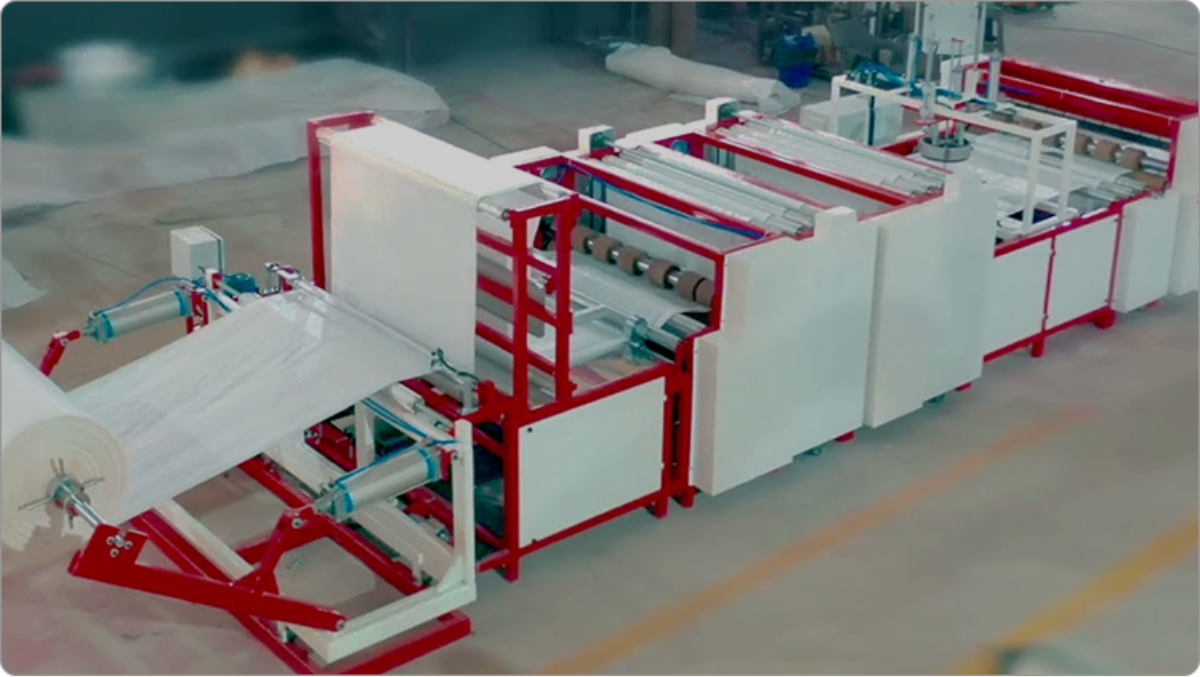

Fabric Cutting
Woven fabric rolls are fed through cutting equipment where the material is sized into body panels, base and top sections, spout components, and internal baffles. Heavy-duty webbing is also cut into lifting-loop lengths according to the dimensions on approved bag drawings.
Stitching and Bag Assembly
Cut fabric panels are stitched using heavy-duty industrial sewing machines to form U-panel, circular, and Q-Bag (also called Baffle Bag) designs. Lifting loops, filling and discharge spouts, inner liners, sift-proof cords, document pouches, and bag labels are attached to match the buyer’s functional configuration.
Quality Inspection and Testing
Assembled bags undergo inspection of dimensions, stitching quality, fabric condition, printing clarity, lifting loops, and accessories. Applicable performance tests are carried out according to the agreed bag specification, Safe Working Load (SWL), and relevant industry standards.

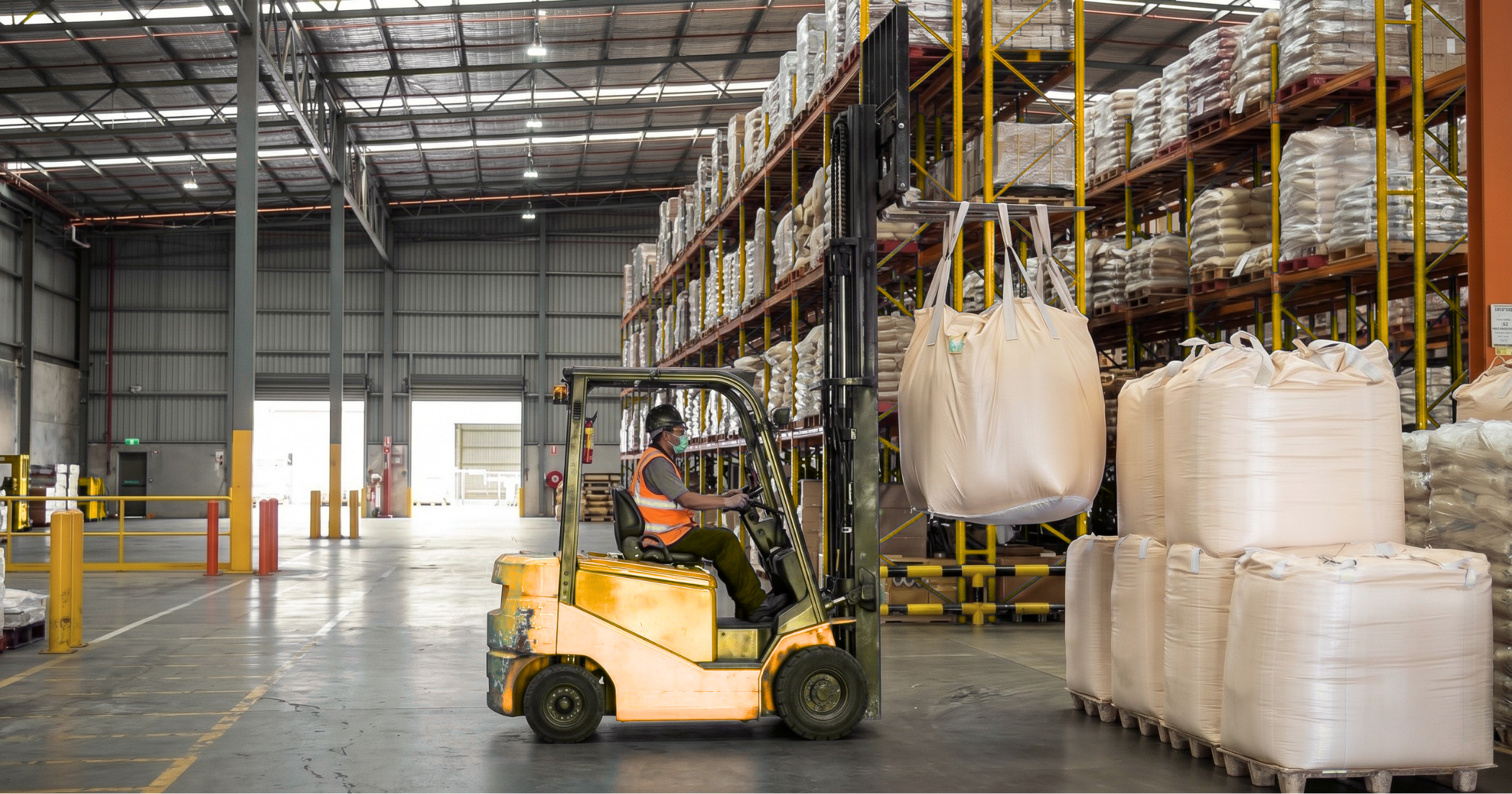

Packing and Dispatch
Finished FIBC bags are folded, compressed into uniform bales or stacked on pallets, wrapped in protective outer packaging, and supplied with the required bag labels and shipping labels. The packed consignments are then prepared for timely domestic delivery or international export dispatch.
Production Capabilities for Bulk Packaging Requirements
Each stage of the FIBC production process flow allows customization so that the bulk bags supplied by FIBC SILVASSA match your product characteristics, filling systems, and logistics chain.
Tailored Bulk Packaging Supply Across Every Stage
Whether your application requires uncoated breathable fabric, laminated moisture-barrier panels, dust-proof seams, or specialized top and bottom spouts, FIBC SILVASSA coordinates the supply of customized bulk bags built to your approved drawings.
Enquire Now for Custom SpecificationsPP Tape Extrusion
Extruded polypropylene tapes formulated with required strength and UV stabilization according to bag application requirements.
Woven Fabric Production
Circular and flat PP woven fabric produced in custom widths and fabric weights (GSM) matched to Safe Working Load specifications.
Optional Lamination & Printing
Coated or uncoated fabric options paired with custom multi-panel printing for buyer branding, handling icons, and identification.
Fabric Cutting & Bag Stitching
Precision panel sizing and industrial sewing assembly, including optional sift-proof (dust-proof) seams for fine powders.
Lifting Loops & Accessories
Cross-corner, side-seam, stevedore, or sleeve loops combined with filling/discharge spouts, inner PE liners, document pockets, and bag labels.
Customized Configs & Testing
Tailored bag constructions supported by dimensional checks and applicable performance testing per agreed specification.
FIBC Bag Types by Construction & Application
We supply a full range of FIBC bag constructions. Because different bulk materials and handling systems have distinct requirements, specifications are always selected according to the intended use.
Standard & Heavy-Duty
U-Panel FIBC Bags
Constructed using a continuous U-shaped fabric panel for the bottom and two opposite sides, stitched with two side panels and side-seam lifting loops for reliable structural stability.
Tubular Construction
Circular FIBC Bags
Produced from tubular fabric woven on circular looms without vertical side seams, fitted with cross-corner lifting loops and a stitched base panel suitable for fine or hygroscopic materials.
Hygienic Specifications
Food-Grade FIBC Bags
Supplied using virgin polypropylene resin and optional inner food-contact liners according to agreed hygiene, cleanliness, and customer-specified food ingredient packaging requirements.
Regulated Transport
UN FIBC Bags
Constructed according to specific UN classification requirements for the packaging and transport of regulated or hazardous solid materials where applicable.
Application-Specific Specification Notice: Not all FIBC bag types are suitable for every product or operating environment. Final bag specifications—including fabric construction, coating, liner selection, static properties, Safe Working Load (SWL), and Safety Factor—must be established according to the intended use.

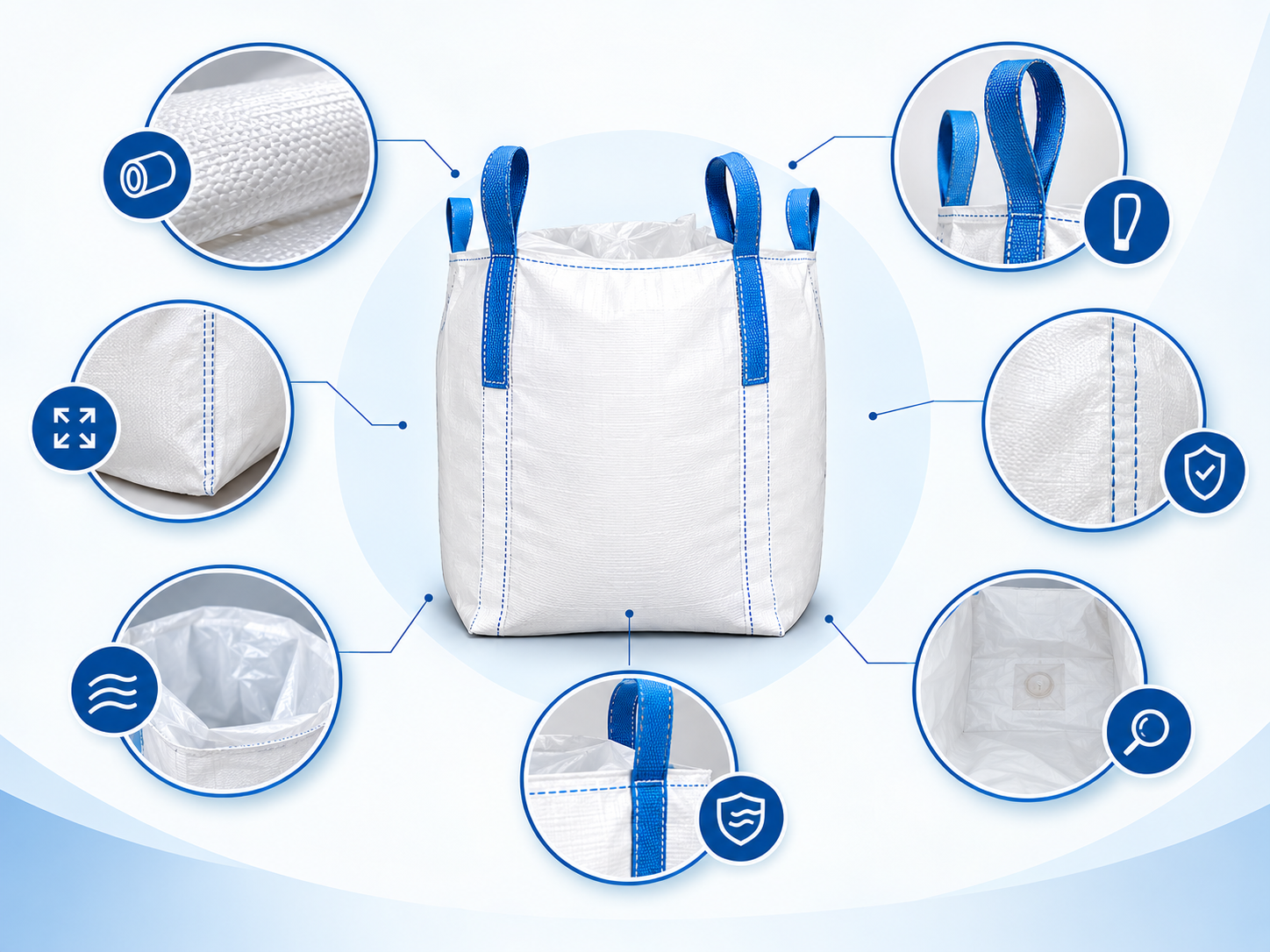

Quality Focus at Every Production Stage
The suitability of an FIBC for its intended application depends on consistent quality control across raw materials, fabric construction, stitching accuracy, dimensional tolerance, lifting loops, accessories, and finished-bag performance.
For every order supplied by FIBC SILVASSA, technical specifications, Safe Working Load (SWL), Safety Factor (such as 5:1 or 6:1), and required testing are established according to customer requirements and applicable standards.
Raw Material & Tape Checks
Verification of virgin polymer inputs, tape denier, width, and tensile properties prior to weaving.
Fabric & Seam Integrity
Inspection of fabric GSM, weave uniformity, lamination weight, stitch density, and seam strength.
Dimensions & Accessories
Checking body dimensions, spout sizes, loop lengths, and liner placement against approved drawings.
SWL & Standard Alignment
Aligning bag construction and required testing with customer-defined SWL and Safety Factor criteria.
Tensile Strength Test
Checking tape, fabric, or other applicable material tensile properties against the agreed specification.
Metal Detection Check
Checking bags or applicable production stages for metal contamination where required by the order or application.
Air Blower / Air Jet Cleaning
Removing loose dust, threads, and production debris from bags where required before final packing.
Order Specification Parameters
- Safe Working Load (SWL) As Specified
- Safety Factor (SF) Per Application
- Fabric GSM & Coating Custom Configured
- Inspection & Test Scope Per Agreed Standard
FIBC Bulk Packaging Applications
Customized bulk bags supplied by FIBC SILVASSA are configured to handle a wide variety of dry flowable powders, granules, flakes, and industrial aggregates.
Agriculture and Animal Feed
Grains, seeds, pulses, fertilizers, and bulk animal nutrition products.
Chemicals
Polymer resins, specialty chemical powders, pigments, and industrial compounds.
Minerals and Industrial Materials
Calcium carbonate, silica sand, bentonite, ores, and processed minerals.
Construction Materials
Cement, dry mortar mixes, sand, gravel, crushed stone, and building aggregates.
Food Ingredients
Sugar, salt, rice, starch, flour, and bulk dry food-processing ingredients.
Other Bulk Commodities
Wood pellets, biomass, recyclable plastics, and general industrial bulk goods.
Why Choose FIBC SILVASSA?
Based in Silvassa, India, FIBC SILVASSA supplies customized Flexible Intermediate Bulk Containers, Jumbo Bags, and PP Woven Packaging Solutions aligned with domestic and international B2B buyer specifications.
Customized FIBC Packaging Solutions
We supply bulk bags tailored to your required internal or external dimensions, filling/discharging interfaces, and pallet footprints.
Multiple Bag Configurations & Specifications
Supply of U-panel, circular, Q-Bag (Baffle Bag), food-grade, and UN bag configurations across varied fabric weights and SWL ratings.
Application-Specific Material & Design Options
Coated or uncoated PP woven fabric, sift-proof seams, and polyethylene liners selected according to your product’s bulk density and flow properties.
Printing & Accessory Customization
Custom multi-side printing, lifting loop styles, filling and discharge spouts, tie cords, and document pouches and bag labels configured to order.
Quality-Focused Production Processes
Careful attention across every stage of the production process flow, from polymer selection and tape tenacity to stitching and final inspection.
Support for Domestic & International Bulk Orders
Compressed baling, secure palletization, clear labelling, and responsive coordination for industrial bulk orders across India and export markets.
Frequently Asked Questions
Answers to common buyer questions regarding the FIBC production process flow, customization options, and bulk order quotations.
Looking for the Right FIBC Packaging Solution?
Share your bag dimensions, safe working load, safety factor, application, customization requirements, and order quantity to discuss a suitable bulk packaging solution with FIBC SILVASSA.
